Difficult airway trolley at Alfred Hospital


Hi folks, Dr Pierre Bradley , Consultant anaesthetist at the Alfred Hospital in Melbourne shared some details of the difficult airway trolley in their department. Thanks Pierre!

QUOTE BEGINS:

“Senior members of the Alfred Department of Anaesthesia and Perioperative Medicine, who have a specific interest in airway education and equipment, undertook the development of a difficult airway trolley based around ANZCA PS 56 document and CRM principles. They currently have a regular small group teaching session on infraglottic oxygenation for all members of staff and orientation to the DA Trolley.

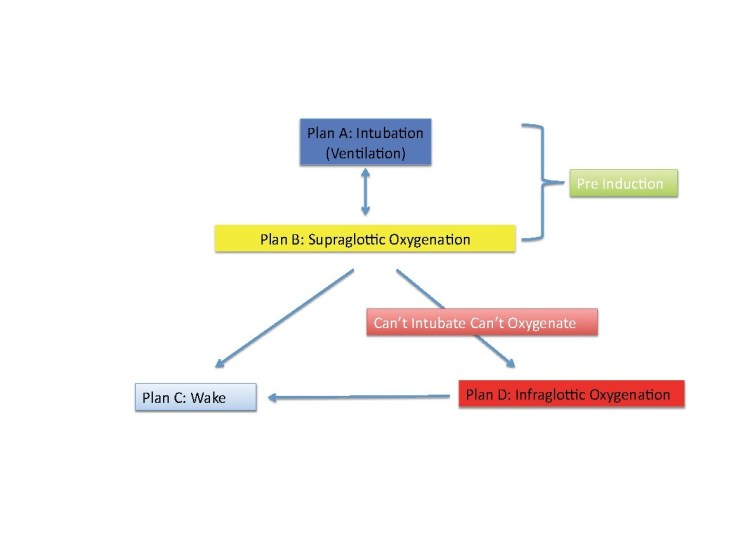

Specifically the aim was simplify the process along CRM principles
Plan A Intubation
Plan B Supraglottic oxygenation
Plan C Wake up
Plan D Infraglottic oxygenation

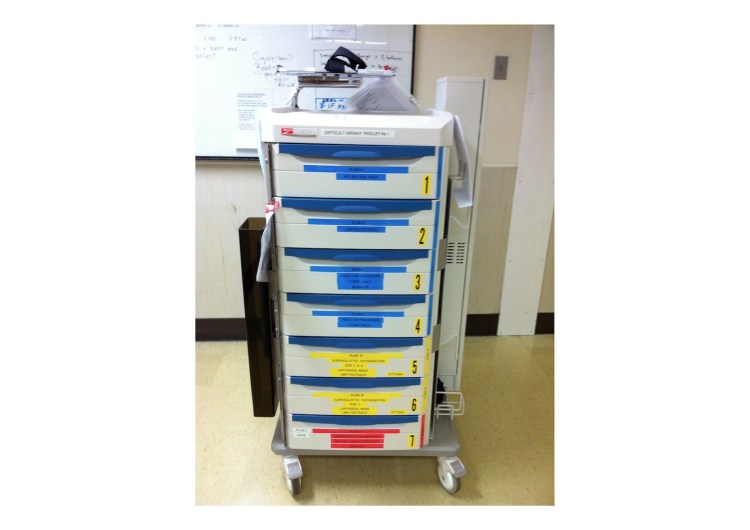

The draws on trolley follow that plan

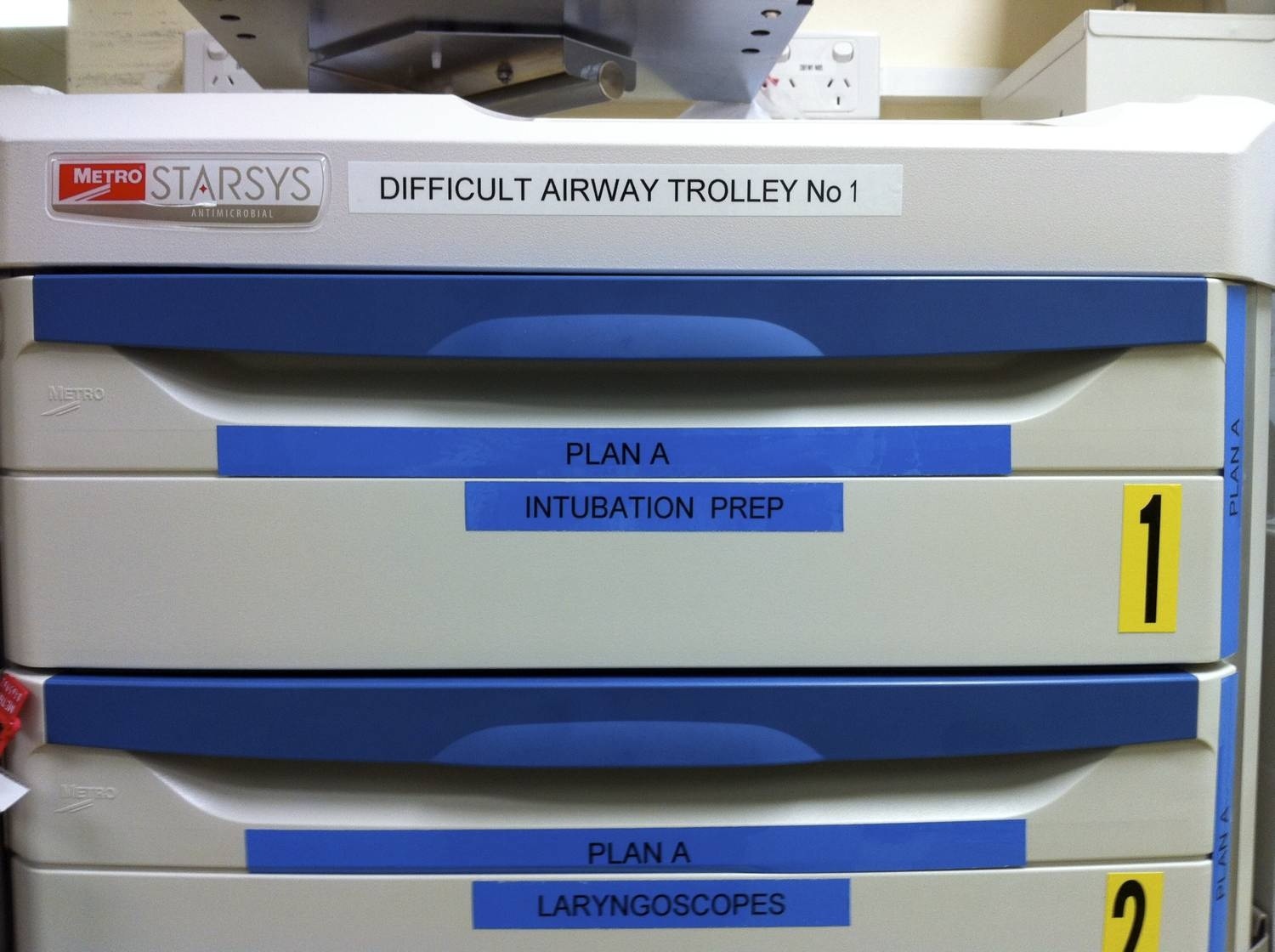

Draw 1: Topicalisation gear including Madgic atomiser , guedels, ovasappian, nasal airways ( ie awake /adjuncts)

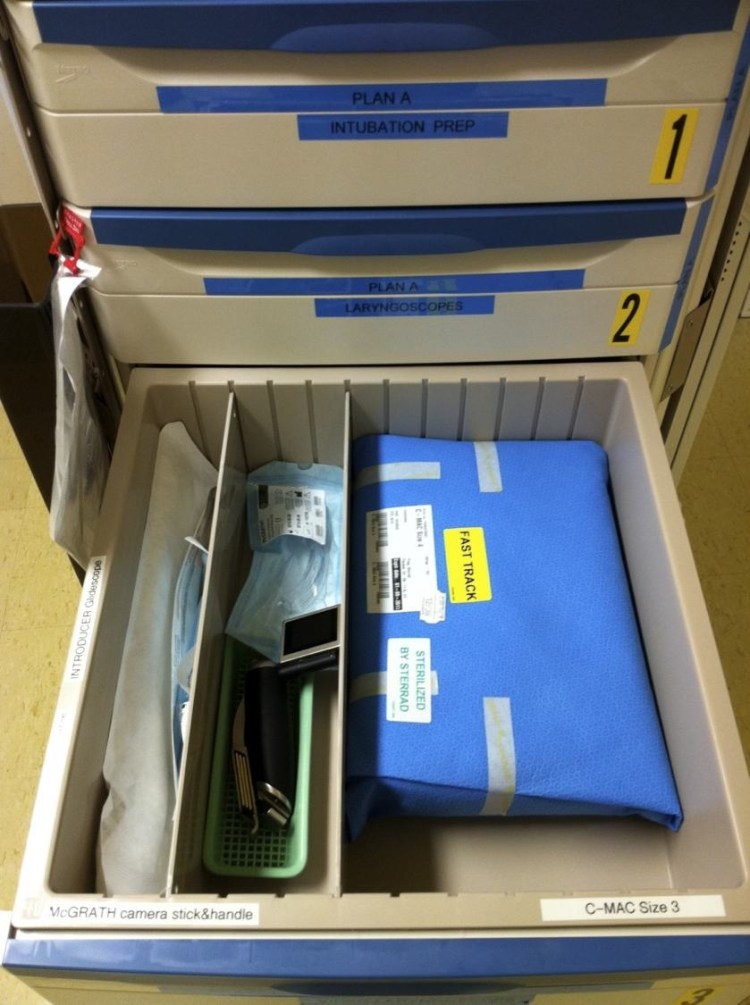

Draw 2: Selection of laryngoscope and handles
Draw 3 & 4: Videolaryngoscopes

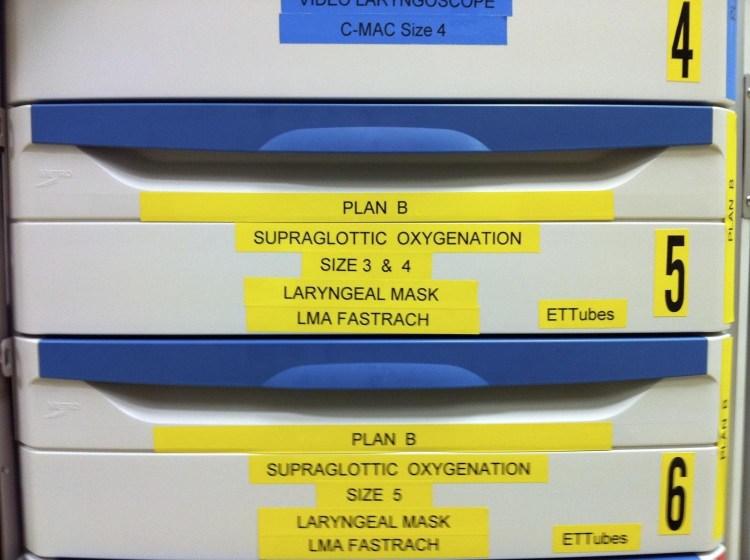

Draw 5& 6: Supraglottic devices
Draw 7: Infraglottic including needle cric pack, surgical and manujet
Sides: AEC, Frovas ( planning on aintree soon) and Algorithm
Top: Not shown – fibrescope lightsource

Cheers
Pierre

Dr Pierre Bradley
Chair of Airway Management Special Interest Group (ANZCA, ASA, NZSA)

Specialist Anaesthetist
Department of Anaesthesia and Perioperative Medicine

Adjunct Senior Lecturer – Monash University – Academic Board of Anaesthesia and Perioperative Medicine

Joint Convenor of Airway Management in Trauma meeting, Saturday 29th June, 2013, Melbourne

Course Director
Advanced Airway Management Refresher Course

iPAD / iPhone App
Topicalisation & Sedation for Awake Fibreoptic Intubation

QUOTE ENDS







The emergency surgical airway kit shown here is now fairly standard across Australian anaesthesia departments based on the concept promoted by Dr Andy Heard from Perth with his 2009 paper
You see there are two distinct and labelled surgical airway kits in the bottom drawer in clear plastic bags, all prepared to deploy. There is the scalpel, bougie and ETT 6.0 kit. The bougie is a Cook Frova design with a ventilation channel and the Rapifit adapter to attach a BVM to the end of it if need be. The idea is that you can rapidly insert the bougie and oxygenate immediately before railroading the ETT into the trachea. This is the theory anyway.
Then there is the needle cric kit with 14G needle cannula , syringes and saline ampoules. The idea is that you use a saline filled syringe to help detect aspiration of air once you think you are in the trachea. You are supposed to do this twice: firstly on initial tracheal puncture, then again to reconfirm prior to delivering oxygen via the cannula. The oxygen delivery system is shown as O2 tubing with a Y connector to control flow and a Luer Lock connector at the delivery end to connect to the cannula. I see in the bottom drawer there is also a Melker cuffed cricothyrodotomy kit for Seldinger technique and a Manujet (manual jet ventilator)
Overall very nice airway trolley!

One Comment Post a comment
  1. All good, except in ED rarely do we have the option to “wake”

    March 4, 2013
